Adjustable tee 114-8 - 48.3 mm

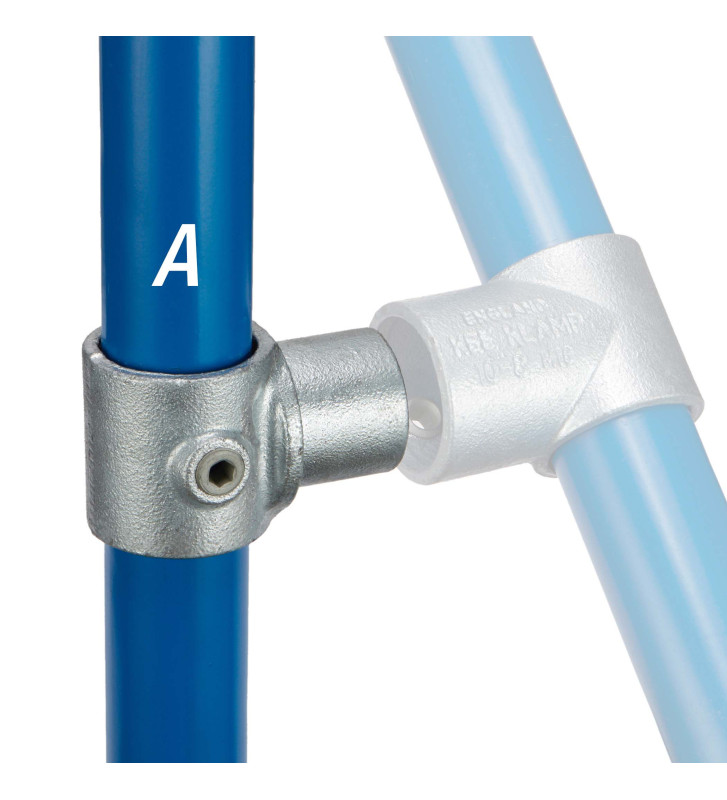

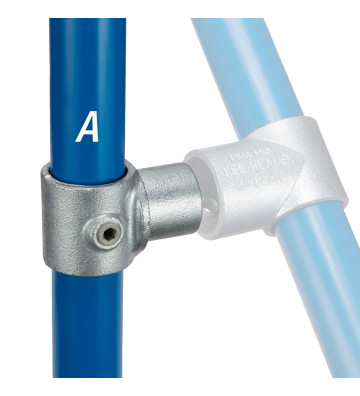

Adjustable Tee 114-8 - 48.3 mm
Product Information
The Adjustable Tee 114-8 is a highly versatile pipe connector designed for secure and flexible connections. This swivel tee is ideal for creating rails for stairs, ramps, or supporting structures. Manufactured by Kee Klamp, it fits pipes with an external diameter of 48.3 mm. This part is equivalent to Type 5 in the KLEMP system.

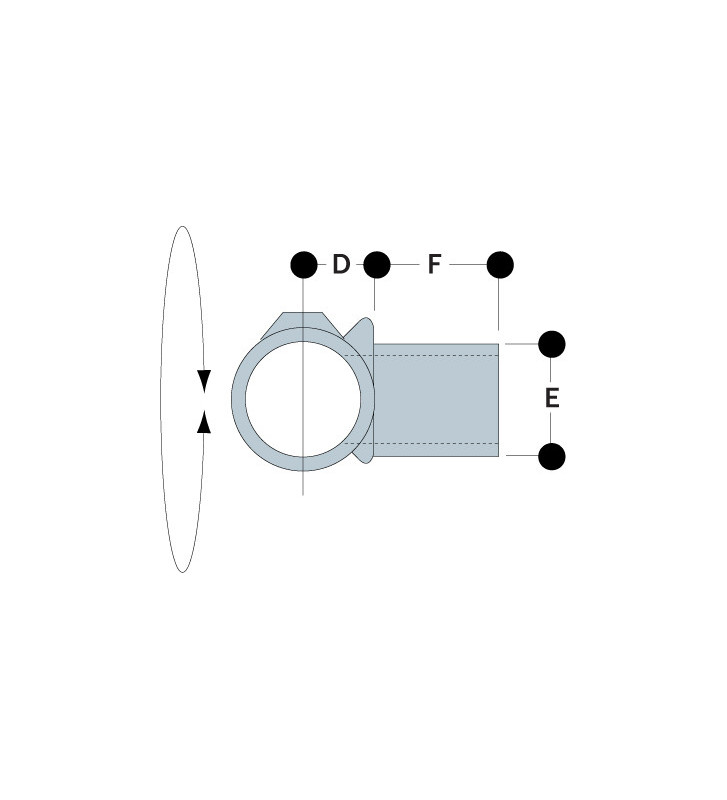

Technical Specifications
- Type: Adjustable Tee
- Kee Klamp Size: Type 114, Kee Klamp size 8
- Pipe Diameter (external): 48.3 mm
- KLEMP System Size: E
- KLEMP System Equivalent: Type 5
- Weight: 0.58 kg
Usage
This adjustable tee is perfect for a variety of applications, including handrails, stairs, ramps, and various supporting structures. Its adjustable nature allows adaptation to different angles, eliminating the need for specially drilled angle fittings.
Main Advantages and Benefits
Versatility
The Adjustable Tee 114-8 adapts to various angles, making it an ideal solution for complex construction projects. Say goodbye to specially drilled angle fittings like Type 27 and Type 28.
Durable and Reliable
Manufactured by Kee Klamp, this product ensures long-lasting strength and durability, even in demanding applications.
Easy Installation
Use this connector with other types, such as Type 10, 15, 25, or 45, to facilitate and speed up installation without the need for specialized tools or skills.

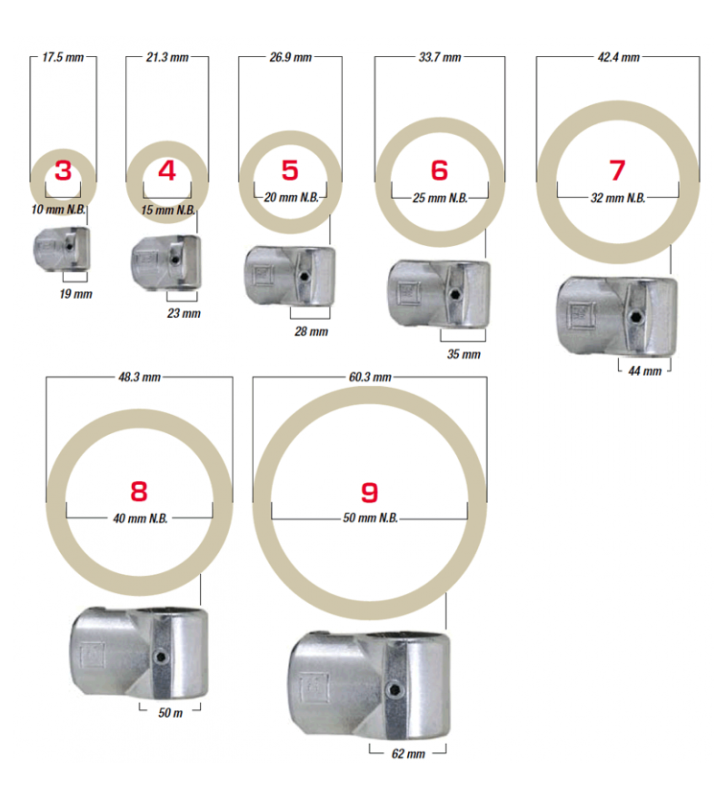

How do I choose the right fitting diameter?
Selecting the correct fitting diameter is crucial to the correct installation of the structure. Remember that there are two types of diameter:
- Nominal diameter (DN): Approximate internal diameter, specified in mm or inches according to European standards.
- Effective diameter (outer diameter, d): Exact outer diameter that is easy to measure.
We recommend using the metric system for a more precise fit. In our range you will find fittings suitable for pipes with outer diameters: 21.3 mm, 26.9 mm, 33.7 mm, 42.4 mm, 48.3 mm and 60.3 mm. With the help of the graphic below, you will select the correct fitting sizes for the structural pipe diameters.

Easy installation of Kee Klamp fittings
Regardless of the complexity of the project, the installation of Kee Klamp fittings is very easy. You don't need any specialised tools or skills to do this.
All you have to do is slide the fitting onto the pipe and tighten the clamping screw with an Allen key.
Kee Klamp system
Kee Klamp is a world-class pipe fitting system with a modular design that makes it easy to design and adapt the structure to different applications. The widest range of fittings offers enormous scope for application.
Easy design
Modular components that speed up work
Hassle-free installation
Installation requires no special tools or skills
Lots of possibilities
Widest range of fittings for universal use
Threadlocking
Additional ThredKoat coating for increased joint durability
Robust designs
Kee Klamp components can carry axial loads of up to 900 kg.
Quality for years
Galvanised cast iron and aluminium provide high corrosion resistance.
Kee Koat coating
Coated pressure bolts for long-term protection
Off-the-shelf availability
Products always in stock
Safety
With our products, you can be sure of meeting all safety requirements. Kee Klamp offers comprehensive solutions for complete security in a variety of environments. From the protection of platforms and passageways in workplaces to robust railings for quayside, bridges or canals.
Easy to design
The Kee Klamp system allows standard-sized pipes to be joined together in a modular way, allowing for quick and easy construction. The structures can be easily adapted to site conditions, providing flexibility and simplicity in design.
Certified quality
Kee Klamp fittings have been approved by TÜV, a renowned European testing institute. The maximum load for each structural element is specified in the TÜV Certificate, a copy of which can be obtained on request.
Compliance with standards
Kee Klamp fittings are manufactured from malleable cast iron in accordance with the PN-EN1562 standard. Each connector is hot-dip galvanised, which complies with the PN-EN1461 standard. All products are TUV-certified for durability and workmanship. The production process is subject to rigorous quality control in accordance with ISO9001 procedures.
Application of the Kee Klamp system
The Kee Klamp system is used for a variety of structures such as guardrails, stair railings, handrails, fences, canopies, sheds, and storage structures. It enables the creation of customised solutions that can be easily adapted to specific requirements. With modular pipe fittings, users can quickly assemble and disassemble structures without the use of expensive tools or technology.

Safety barriers

Guardrails

Disabled access ramps
Do you need technical support? We are here to help!
We offer comprehensive technical support, including product advice and the opportunity to test your designs.
Our team is ready to quickly answer any questions you may have about your structures. You can contact us at any time.

Data sheet
- Model
- 114
- Kee Klamp Size / Pipe Size
- 8
- Fits pipe (nominal bore) / Inner ø of fitting pipe (")
- 1 1/2 in
- Function / Type
- Tees
- Producer
- Kee Safety
- So
- Kee Klamp
- Material
- Cast iron
- Coating / Protection
- Galvanized
- Weight
- 0.58
- Equivalent in KLEMP System
- KLEMP - Typ 5
Specific References
- EAN13
- 5904484394424
We understand the needs of our business clients. That's why we offer attractive wholesale purchasing conditions and a range of facilities that facilitate cooperation and the ordering process. Below, we present detailed information about B2B wholesale purchasing options, discounts, the ordering module, and other benefits.
Quantity Discounts
We offer attractive quantity discounts depending on the number of items added to the cart. The discount table is available on each product page:
| Quantity | Unit Discount |
|---|---|
| 10 pcs | 2% |
| 25 pcs | 5% |
| 50 pcs | 10% |
| 100 pcs | 15% |
| 200 pcs | 20% |
So, if you add 100 units of a given product to the cart, the system will automatically apply a 15% discount.
B2B Account
It is possible to set up a B2B account that offers permanent discounts on the entire assortment. To convert your standard customer account into a B2B account, register a standard customer account, then send us an email with information about which email address the account was created for and a request to enable the B2B account. After manual verification, we convert the standard customer account into a B2B account, with an initial permanent discount of 5%.
Discount System
By default, we do not combine discounts. Instead, we apply the most favorable discount for the customer. This means that if you buy 50 units of a given product and have a 5% permanent discount set for the customer group and a specific 10% discount on the product when purchasing more than 50 units, the system will choose the 10% discount because it is more favorable.
Example:
- Initial permanent discount for B2B customers: 5%
- Specific product discount: 10% when purchasing more than 50 units
- The customer buys 50 units of the product
The system will apply the more favorable discount, i.e., a 10% discount on the product.
Negotiations for Regular Customers
Regular customers who buy from us regularly have the opportunity to negotiate terms and increase the permanent discount. We then verify the total orders and negotiate terms based on this. Constant cooperation with us can bring very favorable purchasing conditions.
B2B Quick Order Module
Especially for B2B customers, we provide a B2B Quick Order Module that allows quick purchases directly from a single product list. Prices are displayed without tax.
Module advantages:
- Quick navigation: You can easily browse products in a single list view, which facilitates navigation in the product catalog.
- Quick orders: The ability to add products to the cart without having to go to the product page.
Invoices and VAT-free purchases for customers with an active VAT-EU number
You will always receive an invoice from us for each order. For customers with an active VAT-EU number, we offer the possibility of purchasing without VAT. When placing an order, you must provide the VAT number during checkout, and the system will apply a zero VAT rate.
Buy now, pay later
Business customers can apply for credit purchases, i.e., on an invoice with a deferred payment date. Deferred payment is possible with the second order. The first order must be paid in advance. For details, please contact us by email. We will conduct a credit check, and after its approval, it is possible to make payments with a deferred date under certain conditions.
Design with KEE KLAMP.
For Kee Klamp brand fittings, we provide a database of CAD / 3D / STP models.
Here you will find files that help you incorporate Kee Klamp fittings into your projects.
The files are available in .stp formats.
We understand the needs of our business customers. That's why we offer attractive wholesale conditions and a range of conveniences that make cooperation and the ordering process easier. Below, we present detailed information about the possibilities of B2B wholesale purchases, discounts, the ordering module, and other benefits.
Quantity Discounts
We offer attractive quantity discounts depending on the number of items added to the cart. The discount table is available on each product page:
| Quantity | Unit Discount |
|---|---|
| 10 pcs | 2% |
| 25 pcs | 5% |
| 50 pcs | 10% |
| 100 pcs | 15% |
| 200 pcs | 20% |
If you add 100 pieces of a product to your cart, the system will automatically apply a 15% discount.
B2B Account
There is an option to set up a B2B account, which offers fixed discounts on the entire range. To convert your standard customer account into a B2B account, register a standard customer account and then send us an email with the information about which email address the account was registered with and request to enable the B2B account. After manual verification, we convert the standard customer account into a B2B account, with an initial fixed discount of 5%.
Discount System
By default, we do not combine discounts. Instead, we apply the most advantageous discount for the customer. This means that if you buy 50 pieces of a product and have a fixed 5% discount for customer groups and a specific 10% discount on the product for purchases over 50 pieces, the system will choose the 10% discount because it is more beneficial.
Example:
- Initial fixed discount for B2B customers: 5%
- Specific product discount: 10% for purchases over 50 pcs
- Customer buys 50 pcs of the product
The system will apply the more advantageous discount, which is the 10% product discount.
Negotiations for Regular Customers
Regular customers who buy from us regularly can negotiate conditions and increase the fixed discount. We verify the total orders and negotiate terms based on that. Constant cooperation with us can bring very favorable purchasing conditions.
B2B Quick Order Module
Especially for B2B customers, we provide the B2B Quick Order Module, which allows for quick purchases directly from a single product list. Prices are shown without tax.
Module advantages:
- Quick navigation: Easily browse products in a single list view, making it easier to navigate the product catalog.
- Quick orders: Add products to the cart without having to go to the product page.
Invoices and VAT-Free Purchases for Customers with an Active VAT-EU Number
You will always receive an invoice for each order. For customers with an active VAT-EU number, we offer the option of VAT-free purchases. When placing an order, provide the VAT number during the checkout process, and the system will apply a zero VAT rate.
Buy Now, Pay Later
Business customers can apply for purchase on credit, which means an invoice with deferred payment. Deferred payment is possible with the second order. The first order must be paid upfront. For more details, please contact us by email. We will conduct a credit check, and after approval, it will be possible to make payments with deferred terms under certain conditions.
Kee Klamp - Downloads
| Document | Format | Download |
|---|---|---|
| Kee Klamp Access Components Guide | |
Download |
| TUV Certificate - Kee Klamp | |
Download |
| Kee Klamp Components Guide | |
Download |
| Kee Klamp in Retail_Shopfittings | |
Download |
| Kee Klamp Installation Guide | |
Download |
| Kee Klamp Access Design Manual | |
Download |
| Kee Klamp Access Handrail Guide | |
Download |
| Kee Klamp Solutions For Retail Display & Shop Fitting | |
Download |
| Kee Klamp Rotech Report 265 7 | |
Download |
| Kee Klamp Rotech Report 265 8 | |
Download |
| Load Charts Kee Klamp & Kee Lite fittings | |
Download |
| Kee Klamp Pre-assembled Uprights | |
Download |
16 other products in the same category:

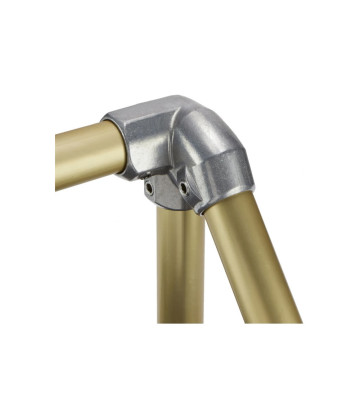

The Right Hand Level to Sloping Down Side Outlet Elbow L320RH-7 by Kee Klamp is an essential fitting for transitioning handrails on slopes and staircases, offering secure connections at angles between 30° and 45°. Designed to fit a 42.4 mm pipe with a nominal diameter of 32 mm, this durable component ensures safety and stability in both residential and commercial guardrail applications. Its versatile design seamlessly integrates into railing systems, ensuring straightforward assembly and maintenance. Choose the L320RH-7 for robust, safe, and efficient railing installations that enhance the safety and aesthetics of your project.

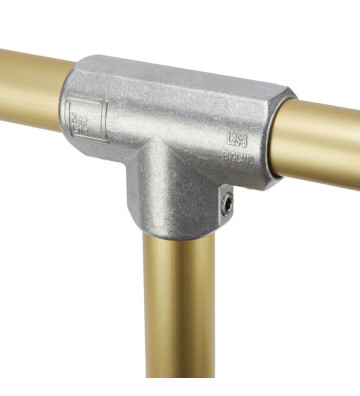

The Three Socket Tee L25-9 from Kee Klamp is your essential component for creating secure and durable 90° pipe connections. Designed to fit a 60.3 mm tube with a nominal diameter of 9, it ensures robust joint formations, perfect for safety railing systems. Its versatility is highlighted by dual socket set screws, allowing flexible configurations suitable for both residential and commercial applications. Compatible with the KLEMP system's F size, it's crafted for seamless integration with existing setups. Lightweight yet exceptionally strong, this Three Socket Tee makes installation straightforward, providing peace of mind with every connection.
The Kee Klamp Level Sloping Down Tee L325-8 is your go-to component for building secure and reliable guardrails on sloped surfaces or staircases. This versatile connector smoothly transitions handrails between level and inclined angles, accommodating slopes from 30° to 45°, ensuring both functionality and aesthetics. Designed to fit 48.3 mm pipes with a nominal diameter of 40, it offers a robust joining solution without the need for welding or complex tools, simplifying your railing construction process. Compatible with the Kee Klamp system and adaptable for integration with KLEMP specifications, this component enhances safety and durability for any project. Trust in its long-lasting performance to keep your guardrails stable and secure in every environment.

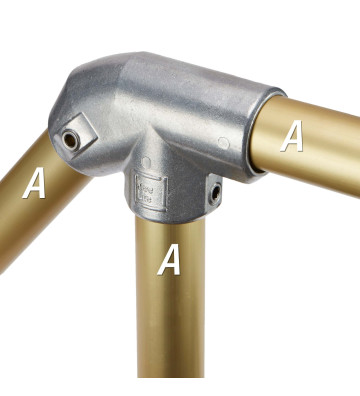

The Level Sloping Up Tee L325A-7 by Kee Klamp is an essential connector for creating secure guardrails on slopes and staircases. Designed to accommodate angles between 30° and 45°, it efficiently transitions handrails from flat surfaces to inclines, ensuring both safety and precision. Fitting a 42.4 mm tube with a nominal bore of 32 mm, it seamlessly integrates into the Kee Klamp system, making assembly quick and easy. Engineered for durability, this versatile component enhances the structural integrity and aesthetic appeal of any railing project. Enjoy the unmatched quality of an innovative solution from a leader in connection technology.
